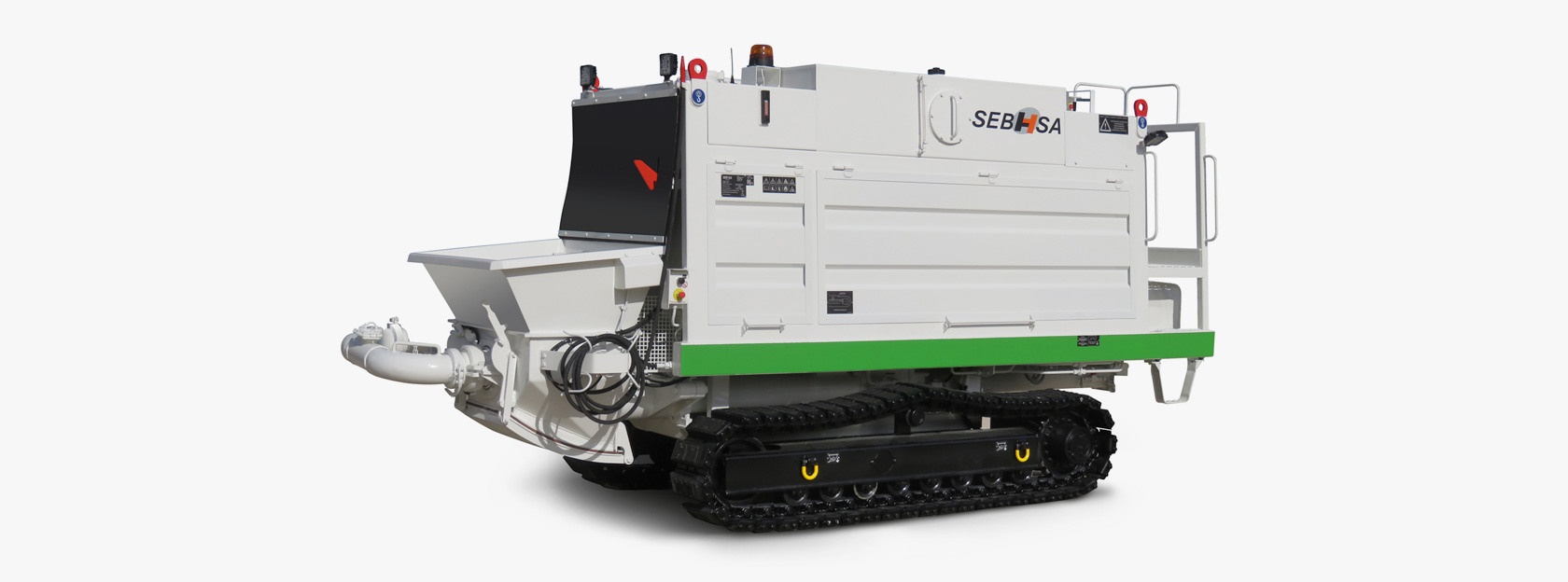

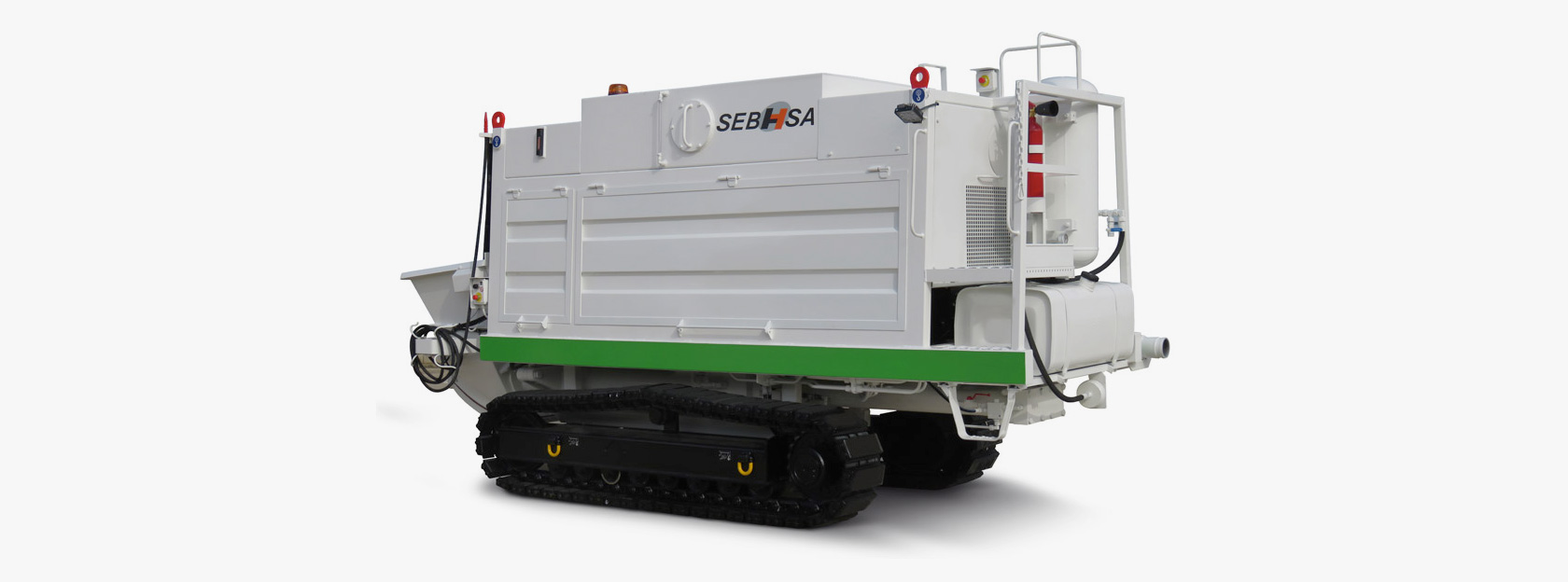

Crawler mounted concrete pump 60 m³/h SEBHSA BD-1606.OR

Compactly designed for work in confined spaces or areas with difficult access and job sites in the city centres and areas with narrow access.
Compactly designed for work in confined spaces or areas with difficult access and job sites in the city centres and areas with narrow access.

Compactly designed for work in confined spaces or areas with difficult access and job sites in the city centres and areas with narrow access. The SEBHSA BD-1606.OR crawler-mounted concrete pump offers an impressive work capacity.
Maximum concrete output: 60 m³/h
Maximum concrete pressure: 60 bar

Highly flexible and self-propelled by its steel chains, the SEBHSA BD-1606.OR crawler-mounted concrete pump is perfect for any type of auger cast and ground improvement. Its slim and compact design makes it ideal for any piling or ground improvement project in confined or cramped spaces, such as city centres, building restoration and subway line projects.

In addition to offering an impressive output capacity of 60 m³/h and 60 bar, and powered by an efficient engine, the SEBHSA BD-1606.OR crawler concrete pump is easy to use and maintain, making it the pump of choice for any projects demanding small to medium size CMC (Controlled Modulus Columns), Rigid Inclusion, CFA (Continuous Flight Auger piles) or similar auger cast or displacement piles.

Key features

  • Mounted on steel tracks with rubber pads optional.
  • Operating completely hydraulic - mechanical in open hydraulic circuit supported by accumulator.
  • Extra big Hopper, water tank and hydraulic oil tank capacity.
  • Equipped and accessorised to the individual needs and demands of each client.

Technical specifications

Diesel engine
Max. flow output
Max. concrete pressure
D. pumping cylinders
 55 kW
60 m³/h
60 bar
180 Ø x 1400 mm
Spec. Crawler mounted concrete pump 60 m³/h SEBHSA BD-1606.OR.pdf689,41 KB
