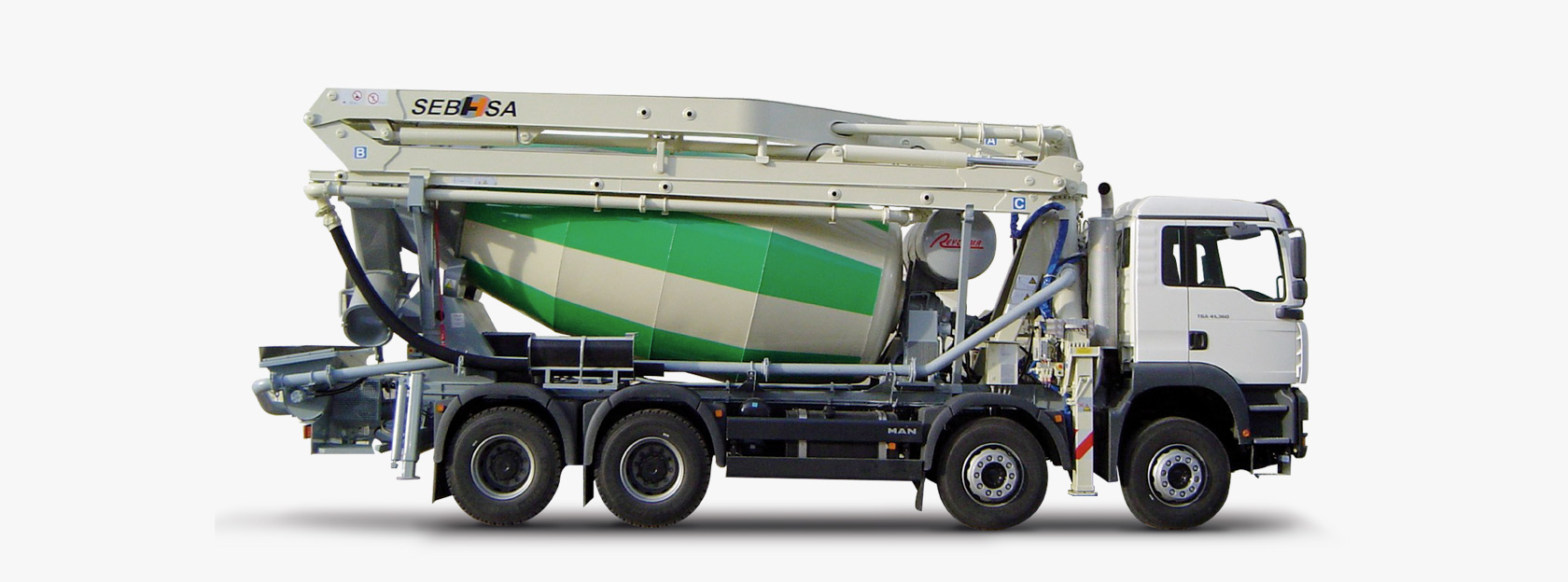

SEBHSA concrete pump with drum mixer on truck
The SEBHSA concrete pump with drum mixer on truck is the ideal solution for construction and civil engineering.
We are specialised in manufacturing concrete mixer trucks with concrete pumps, used in general construction and civil engineering. These SEBHSA concrete pump & drum mixer on trucks are a perfect combination of a concrete pump, a concrete durm mixer truck and a concrete placing boom, making them the best complement to increase the capabilities of ready-mix concrete suppliers, as well as a multipurpose and profitable vehicle for construction companies with small to medium jobsites.
The SEBHSA concrete mixer truck with concrete pump can be used as a combined machine, as a concrete pump or a separate concrete mixer. In any case, we offer three high-end construction machines in one package, making them an ideal and cost-effective option for any construction project.
In addition, SEBHSA's concrete mixer trucks are very easy to set up and operate by a single person, allowing about 4-5 tasks per day to be completed quickly and safely. The robust construction and fully hydraulic mechanical drive of the concrete pump ensure low-maintenance operation, long service life and high resale value of the concrete mixer truck.
Worth mentioning that all SEBHSA concrete mixer trucks with concrete pumps can be customised to the individual needs of each client, being able to choose the chassis, the size of the concrete mixer pump and the capacity of the concrete tank that is most suitable to the job site needs. Sebhsa offers both standard and customised models of concrete mixer trucks to meet the needs of all its customers. If you are interested in purchasing a concrete mixer truck with a SEBHSA concrete pump, do not hesitate to contact us to learn about all the available options.
Key features
- Maximum horizontal pumping distance of 220 meters.
- Maximum vertical pumping height of 60 meters.
- Capacity of the concrete receiving hopper of 450 liters.
- Three articulated booms with a maximum vertical reach of 25.7 meters and a maximum horizontal reach of 21.8 meters.
- Fully hydraulic/mechanical drive of the concrete pump.
- Rotation of the turret on the slewing bearing.
Technical specifications
Hopper capacity
Max. flow output
Max. concrete pressure
D. pumping cylinders
55 kW
450 l.
50 m³/h
40 bar
180 Ø x 1150 mm
